Proofs in Geometry: Definitions, Formats, and Essential Examples

Geometry is all about shapes, lines, and angles. Proofs allow us to be certain that a given statement is true. Proofs give us explicit procedures that tell us why a conclusion is true. Proofs in mathematics help to check facts. It follows a logical path, starting with facts that we know already and concluding in a conclusion.

There are different ways to write proofs. Some use a step-by-step format, while others explain ideas in sentences. Some rely on diagrams, and others use algebra. Each method helps show that a statement is true. This article will explain what geometric proofs are, how they work, and why they matter. It will cover different methods and give examples. By the end, you will see how proofs make geometry clear and reliable.

Foundations of Geometric Proofs

A geometric proof is a logical method of demonstrating that a geometric statement is true. It is founded on facts, rules, and reason to conclude to a point. Proofs are required because, without them, we would not be able to know if a geometric rule always holds true. They begin with simple concepts and progress to more complex ones. To dive deeper into math topics like this and to get help with other areas, such as calculus, you can check out tools like AI for calculus from EduBrain, which offers support and resources for learning. The basics of any geometric proof depend on three main components:

• Axioms: Statements accepted as true without proof.
• Postulates: Basic properties of geometric objects that we assume to be true.
• Theorems: Statements that can be proven using axioms and postulates.

One of the most significant influences on geometric reasoning is Euclid’s Elements. Written over 2,000 years ago, it established the structure for geometric proofs. Euclid used definitions, postulates, and logical steps to prove theorems. His work remains a cornerstone of how we approach geometry today.

Types of Geometric Proofs

Direct Proofs

A direct proof uses step-by-step logical reasoning to show that a statement is true. Each step builds on the last. It starts with known facts or definitions and ends with the conclusion. This method is usually the simplest. It relies on definitions, axioms, and theorems that previous mathematicians have proven.

• Example: Proving the Triangle Sum Theorem, which states that the sum of the angles in any triangle is $$\angle A + \angle B + \angle C = 180^\circ$$.

To prove this, we draw a triangle and extend one of its sides. By using parallel lines and the corresponding‐angle theorem, we show that the angles inside the triangle must add up to 180°. This proof relies entirely on logical steps from basic geometric facts.

Indirect Proofs (Proof by Contradiction)

In an indirect proof, also known as a proof by contradiction, we assume the opposite of what we want to prove. Then, through logical steps, we show that this assumption leads to a contradiction. Since a contradiction cannot be true, the original assumption is false, proving the statement we aimed to prove.

• Example: Proving the irrationality of $$\sqrt{2}$$.

We assume that $$\sqrt{2}$$ is a rational number, meaning it can be expressed as a fraction $$\frac{a}{b}$$ (where $$a$$ and $$b$$ are integers with no common factors). By squaring both sides, we get $$2 = \frac{a^2}{b^2}$$, which leads to the conclusion that $$a^2$$ is an even number and must also be even. This leads to further steps showing that $$b$$ must be even as well, contradicting the assumption that $$a$$ and $$b$$ have no common factors. Thus, $$\sqrt{2}$$ is irrational.

Construction Proofs

Construction proofs use tools like a compass and straightedge. These help create geometric objects or diagrams to prove a statement. These proofs are helpful for understanding geometric properties that we can see and build.

• Example: Constructing the perpendicular bisector of a line segment.

We first use a compass to draw two circles with the same radius centered at each endpoint of the segment. The intersection of these circles gives us two points. Connecting these intersection points with a straightedge produces the perpendicular bisector, which divides the original segment into two equal parts.

Algebraic Proofs

Algebraic proofs combine geometry and algebra to prove statements. This method is common when a geometric figure is on a coordinate plane. Algebraic equations help show geometric relationships.

• Example: Proving the midpoint formula.

Let’s say we have two points, $$A(x_1, y_1)$$ and $$B(x_2, y_2)$$. The midpoint $$M$$ of the line segment connecting these points is found by averaging the x‐ and y‐coordinates of the two points: $$M = \left(\frac{x_1 + x_2}{2}, \frac{y_1 + y_2}{2}\right)$$. One can demonstrate that $$M$$ is the midpoint by establishing that the distances from each endpoint to $$M$$ are equal using the distance formula.

Different Ways to Present Geometric Proofs

Proofs in geometry enable us to demonstrate the truthfulness of a claim. Various approaches of organizing this evidence exist, and every one of them offers advantages. The challenge and your desired method of displaying the phases will determine the structure you decide upon. Let us investigate the most often used proof structures.

Two-Column Proofs

A two-column proof is a simple and organized way to write a proof. It has two columns: one for the statements and the other for the reasons behind those statements. This layout makes it easy to follow each step and see how everything connects. It’s commonly used because it is clear and easy to understand.

• Example: Proving triangle congruence using the ASA (Angle‐Side‐Angle) Theorem.

Here’s how you might set it up:

Paragraph Proofs

A paragraph proof is written as a story. It connects all the logical steps in one paragraph without separating statements and reasons. This format works well when you want to explain the reasoning in a more natural way.

• Example: Proving that vertical angles are equal.

When two lines intersect, they form pairs of opposite angles. The two vertical angles are congruent to each other since they share a common vertex and are formed by the same lines. Thus, by definition, vertical angles always satisfy $$\angle 1 = \angle 2$$.

Flowchart Proofs

A flowchart proof shows the steps using a diagram. Arrows connect each statement to the next, making the logic easy to follow visually.

• Example: Proving the properties of parallelograms.

In a parallelogram, the opposite sides are equal and parallel. A flowchart can show how we use the definition of a parallelogram and the properties of parallel lines to prove these facts step by step.

Coordinate Geometry Proofs

Coordinate geometry proofs use algebra along with geometry. This format is useful when working with shapes on a coordinate plane. You can prove geometric relationships by using the distance or slope formula.

• Example: Proving the distance formula. If you have two points, $$(x_1, y_1)$$ and $$(x_2, y_2)$$, the distance between them is given by $$d = \sqrt{(x_2 – x_1)^2 + (y_2 – y_1)^2}$$.

Fundamental Theorems and Their Proofs

Several key theorems in geometry provide foundational rules for proving various properties. Here are some important ones:

Triangle Congruence Theorems

Triangle congruence theorems affirm that two triangles are congruent in size and shape. Some of the most significant theorems are:

• SSS (Side‐Side‐Side): Two triangles are congruent if three sides of one triangle match three sides of another triangle.
• SAS (Side‐Angle‐Side): Two triangles are congruent if two sides and the included angle of one triangle match two sides and the included angle of another triangle.
• ASA (Angle‐Side‐Angle): Two triangles are congruent if two angles and the included side of one triangle match two angles and the included side of another triangle.

Example Proof: Proving congruence using the ASA theorem. If we know that $$\angle A = \angle D$$, $$\angle B = \angle E$$, and $$AB = DE$$, we can prove that $$\triangle ABC \cong \triangle DEF$$ by ASA.

Parallel Lines and Angles

When a transversal cuts two parallel lines, the angles formed have specific relationships. Key angle pairs include:

• Alternate Interior Angles: These are equal when a transversal cuts two parallel lines.

Example Proof: Proving that alternate interior angles are equal. If lines $$\ell$$ and $$m$$ are parallel and are cut by transversal $$t$$, then $$\angle 1 = \angle 2$$.

Pythagorean Theorem

The Pythagorean Theorem states that in a right triangle, the square of the hypotenuse is equal to the sum of the squares of the other two sides: $$a^2 + b^2 = c^2$$. You can prove this theorem using different methods, like algebraic or geometric reasoning. It is key for many geometric calculations, especially with right triangles.

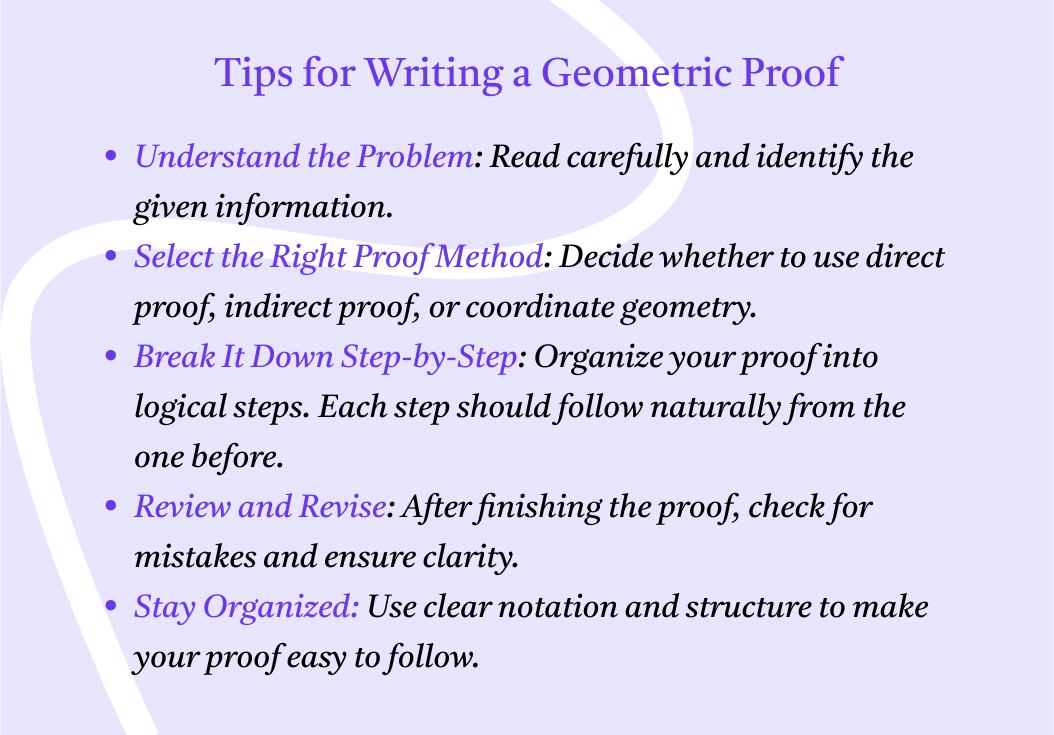

How to Approach Writing a Geometric Proof

Writing a geometric proof can seem hard, but it gets easier with a simple process. Start by reading the problem carefully. You can also use resources like the geometry AI solver to help organize and understand geometric proofs. Next, think about how to prove the statement. You can use direct proof to show each step in order. Or you can try an indirect proof (proof by contradiction) if needed. If the problem involves coordinates, use coordinate geometry. Choose the best method for the problem.

Then, break the proof into clear steps. Each step should follow from the one before it. Make sure each step is explained with a reason. This will help make the proof easy to follow. Once the proof is done, review it carefully. Check for mistakes or unclear steps. Ensure the logic is correct, and each step is backed up with a reason. Revising will make your proof clearer and more accurate.

Final Words

We looked at different ways to write geometric proofs. Some of these ways include two-column proofs, paragraph proofs, and diagram or algebra methods. All of these ways help to make geometric concepts more understandable and organized. Learning these methods is crucial. They also help you become a better problem solver in geometry and beyond. The better you become at making proofs, the more easily you can handle tough challenges. The more you practice making proofs, the better you get. Over time, proof-writing will become a natural part of your mathematical toolkit.
